If your wire EDM system uses water as a dielectric fluid, you have to treat that water with special ion exchange resins in a deionization, container to remove minerals and make it nonconductive so it can work as an insulator.

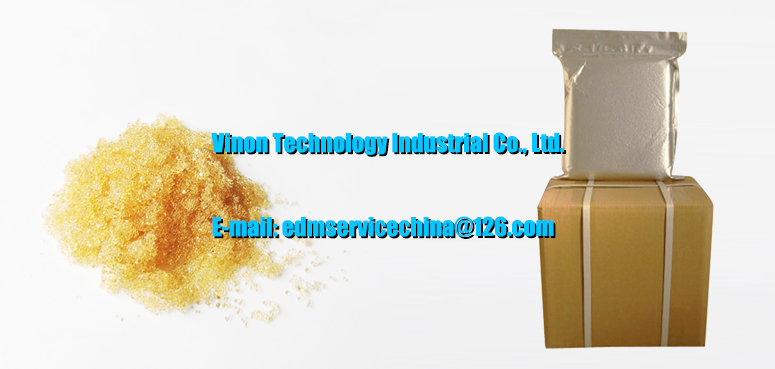

VINON TECHNOLOGY INDUSTRIAL CO., LTD. provides is a ready-to-use mixed bed comprising by strongly acidic and strongly basic (type I) gel-type cation and anion exchanger that especially applicable to mixed bed systems for the wire-cutting and as polishing step after DI systems in the production of pure water. as a specific chemical mixing ratio and components are highly regenerated and specially cleaned, so high purity water can be easily obtained.

Packaging:
5Liters/bag, 25Liters/carton (Aluminum foil vacuum packaging)

General Description

Ionic form, as shipped	H＋／OH－
Functional group	Sulfuric acid／quaternary amine
Matrix	Crosslinked polystyrene
Structure	Gel type beads
Appearance	Brown,translucent

Physical and Chemical Properties

Water retention %		52-57
Bead size ≥95％ mm		0.315-1.25
Uniformity coefficient max.		1.6
Bulk weight g/l		700－800
Density approx. g/ml		1.13
Min Conversion	Cation %	99
	Anion %	90

Recommended Operating Conditions

Operating temperature max. ℃	60
Specific loading BV/h	20-90
Bed depth min. mm	600
Storage temperature ℃	0-40

The recommended operating conditions is under ordinary operating conditions. It is based on tests in pilot and data obtained from industrial applications.
